Entry Line Premium Quality

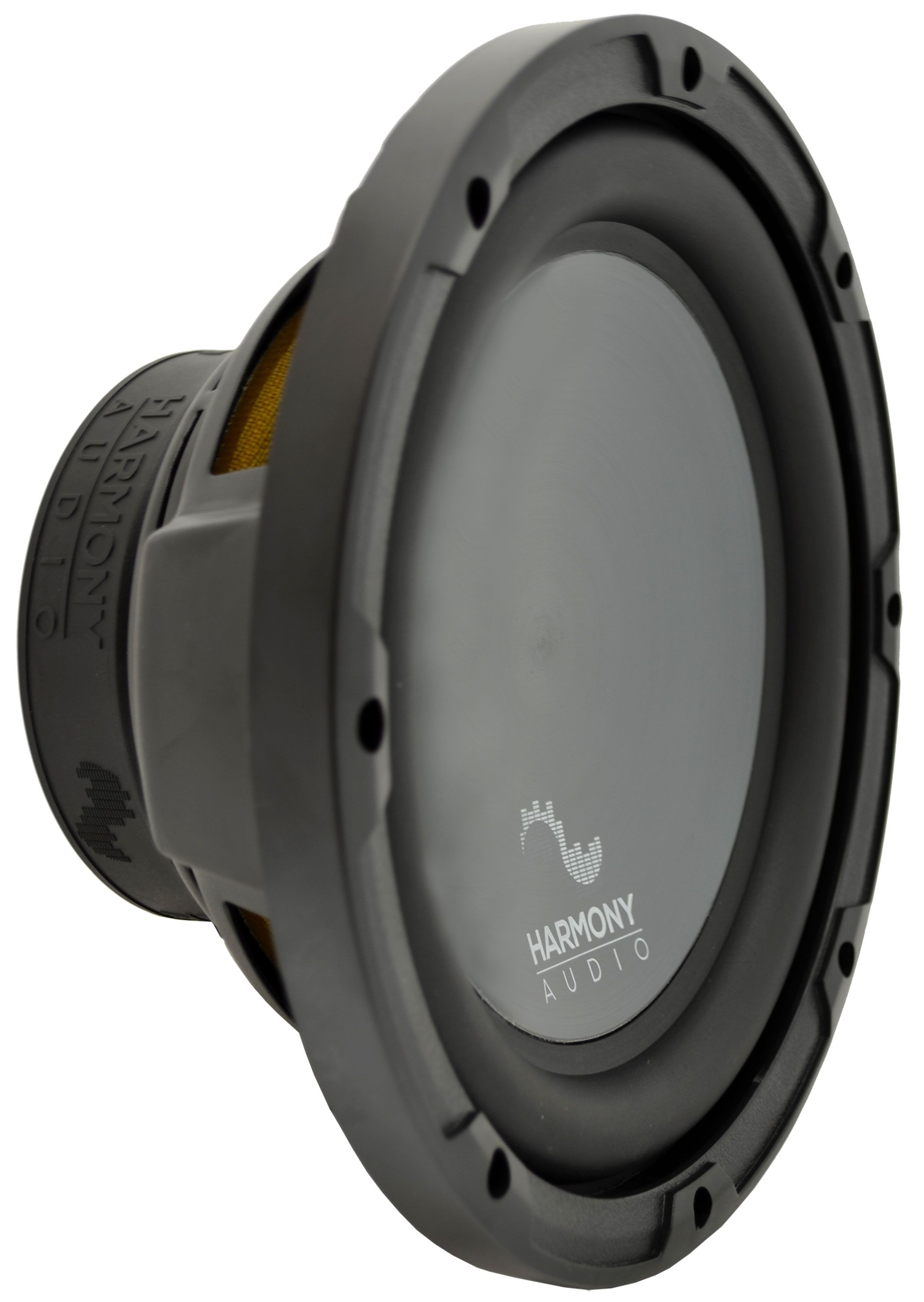

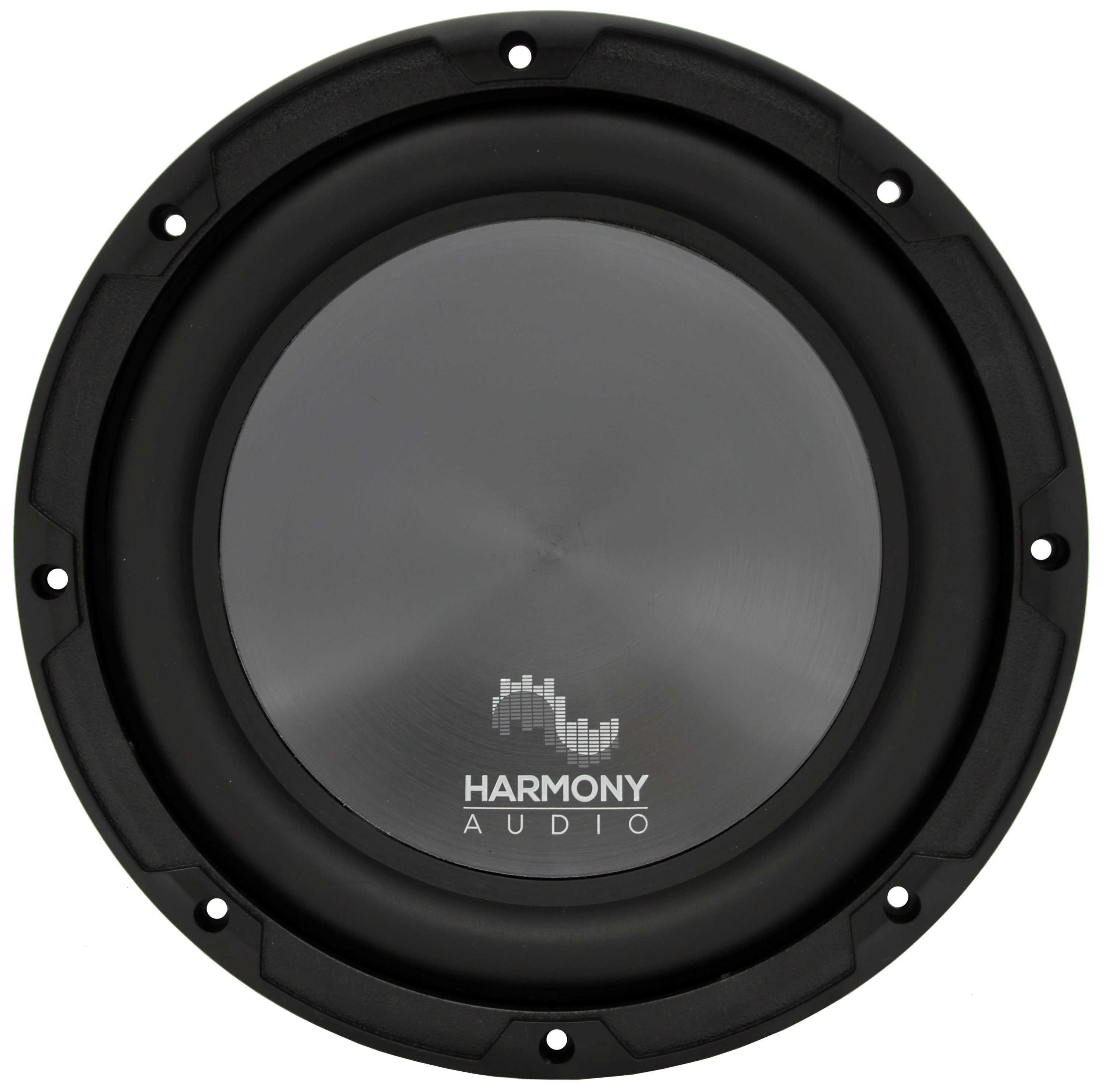

Harmony Audio introduces the Rhythm Series which is our "entry" line but there is nothing entry about this series with features like:

  • Interwoven Into Spider Tinsel Leads

  • Durable Butyl Rubber Surround

  • Metallic Injection Molded Polypropylene Cone

  • 1.5” Copper Voice Coil

  • Steel Basket

  • Ferrite Magnet

  • Kapton Former Material

Materials are only half the story though the performance is what really makes the Rhythm series shine with a clean and smooth bass response in virtually any style sub box.

Hassle-Free Connection

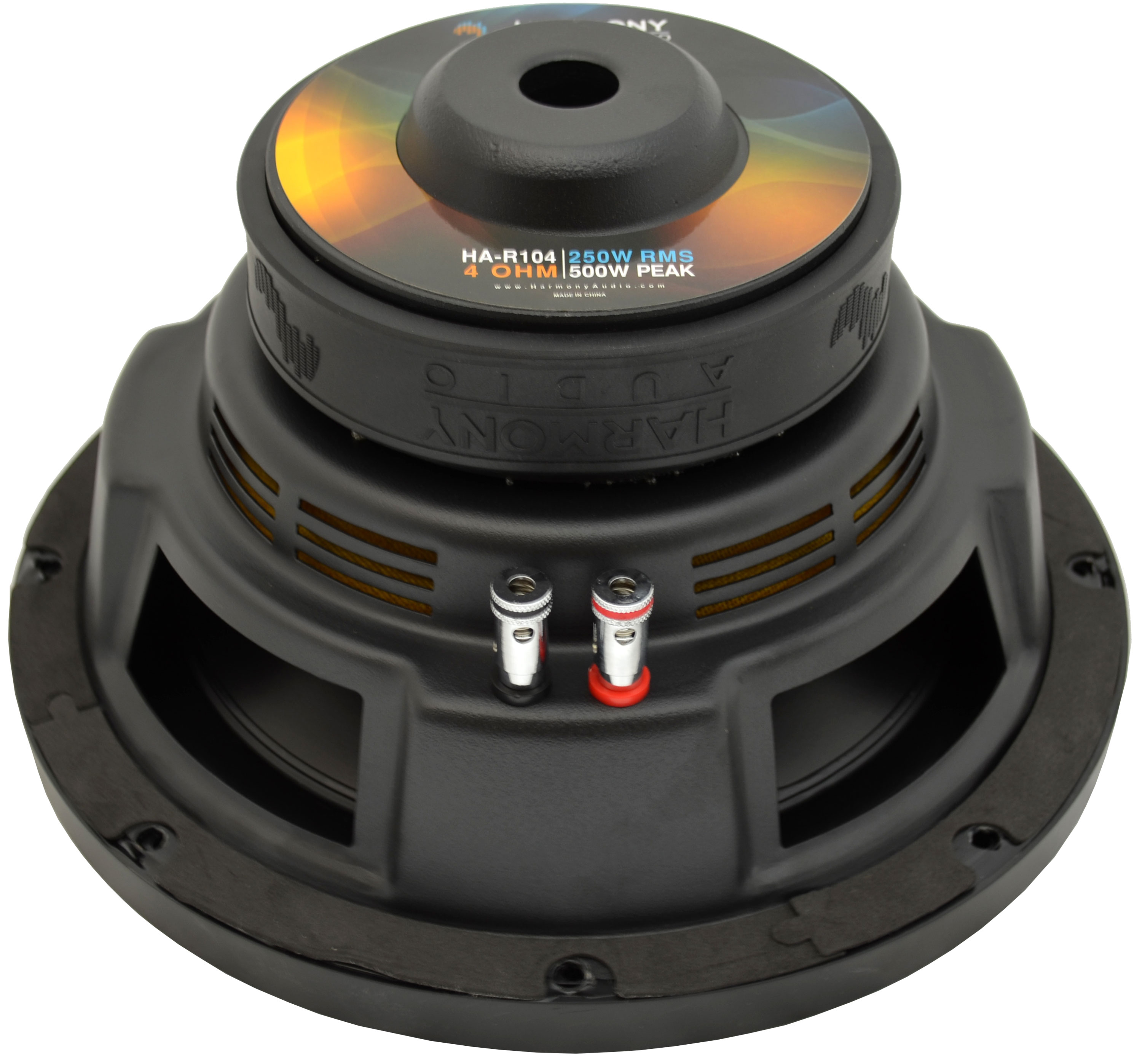

The wire terminal is one of the most important features of the sub which handles the power transfer from your amp to the sub. Cheap outdated spade terminals take more time and effort to install and to keep it connected once installed. All Harmony Audio subs feature a spring-loaded push terminal that will accept direct speaker wire ensuring the ultimate connection and power transfer.

R Series
R Series

Leading The Way

A tinsel lead is the small wire that connects the voice coil to the input terminal and if you look at most other subs its positioned so when the subwoofer is playing the cone will actually slap into the leads creating a pop noise when playing. The advantage to an interwoven tinsel leads is both increased durability and performance.

Advanced Air Flow Cooling System

Harmony Audio Rhythm Series subs feature large slotted vents directly under the spider which allows cool air to quickly reach all the sensitive components.

Model HA-R104 HA-R122 HA-R124 HA-R154
Voice coil Single 4 Ohm Single 2 Ohm Single 4 Ohm Single 4 Ohm
Peak (watts) 500 600 600 900
RMS (watts) 250 300 300 450
Sensitivity (dB) 86.1 88.2 88.2 90.4
Mounting Depth (inch) 5 5/16 5 11/16 5 5/16 7 11/16
Mounting Cutout Diameter (inch) 9 1/4 11 1/8 11 1/8 13 7/8
Size (inch) 10 12 12 15
Frequency Response 30Hz-300Hz 27Hz-300Hz 27Hz-300Hz 25Hz-300Hz
