Only The Strong Thrive

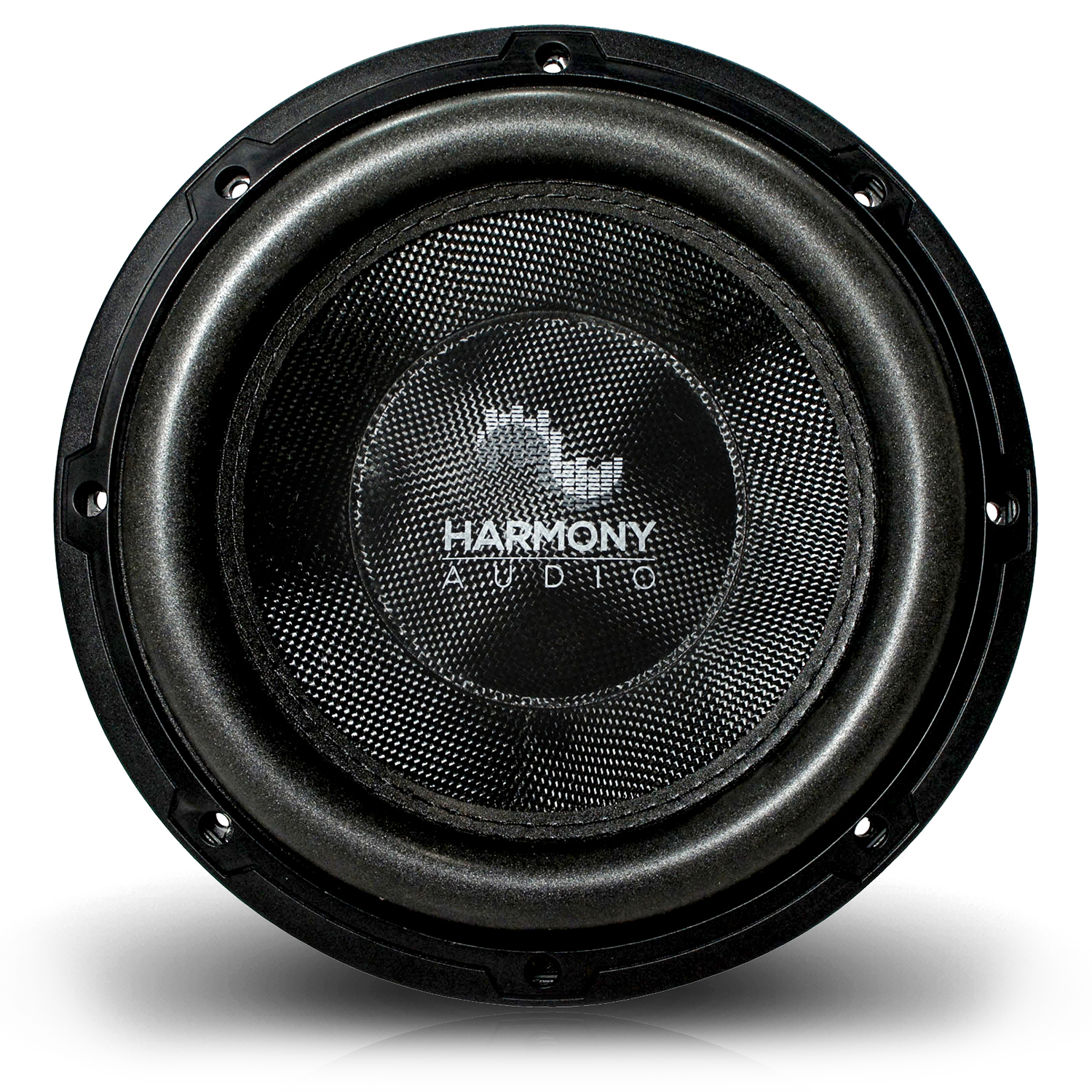

The Carbon Series Subwoofers have lightweight carbon fiber cones which is one of the strongest and lightest material available. They’re much stronger than paper cones or even aluminum. They look exquisitely and have more natural sound. There isn’t a lot of carbon fiber cones out there. Some of the key features are:

  • Fiber Lightweight Cone

  • Stitched High Roll Foam Surround

  • Tinsel Leads Woven into Spider

  • Die-Cast Aluminum Basket

  • High Flux Ferrite Magnet

In addition to rigidness and elegance, Carbon Series subs can handle an enormous power loads.

Advanced Air Flow Cooling System

Harmony Audio Carbon Series subs feature large slotted vents directly under the spider which allows cool air to quickly reach all the sensitive components.

C Series
C Series

Hassle-Free Connection

The wire terminal is one of the most important features of the sub which handles the power transfer from your amp to the sub. Cheap outdated spade terminals take more time and effort to install and to keep it connected once installed. All Harmony Audio subs feature a spring-loaded push terminal that will accept direct speaker wire ensuring the ultimate connection and power transfer.

Model HA-C102 HA-C104 HA-C122 HA-C124 HA-C152 HA-C154
Voice coil Dual 2 Ohm Dual 4 Ohm Dual 2 Ohm Dual 4 Ohm Dual 2 Ohm Dual 4 Ohm
Peak (watts) 2000 2000 2200 2200 2800 2800
RMS (watts) 1000 1000 1100 1100 1400 1400
Sensitivity (dB) 85.7 85.7 88.6 88.6 88.7 88.7
Mounting Depth (inch) 6-5/8 6-5/8 7-1/8 7-1/8 8-1/4 8-1/4
Mounting Cutout Diameter (inch) 9-5/16 9-5/16 11-1/4 11-1/4 13-13/16 13-13/16
Size (inch) 10 10 12 12 15 15
Frequency Response (Hz) 45-300 45-300 40-300 40-300 39-300 39-300
